RADIK KLASIK - Steel panel radiator with side connection

VERSION KLASIK Tuesday, 26 September 2017 12:40
Rate this item
(1 Vote)



RADIK KLASIK is a steel panel radiator in KLASIK version which allows left or right side connection to the heating system. It is intended for pressurized or gravity-fed heating systems.

There are two upper and two lower hangers welded at the back of the radiator. Radiators in length 1 800 mm and more have six hangers. The only exception is panel radiators in height 200 mm which do not have any hangers welded at the back side.

Additional Info

  • Technical Data

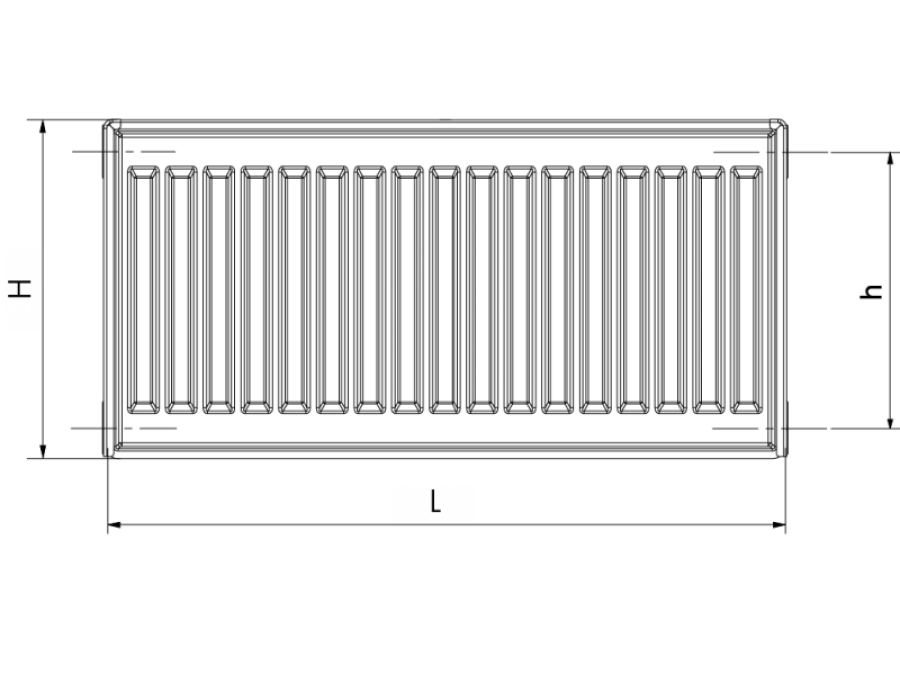

  • Height (H): 200, 300, 400, 500, 600, 700, 900 mm
  • Length (L): 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2300, 2600, 3000 mm
  • - Type 10: 47 mm
  • - Type 11: 63 mm
  • - Type 20: 66 mm
  • - Type 21: 66 mm
  • - Type 22: 100 mm
  • - Type 33: 155 mm
  • Connecting pitch: h = H - 54 mm
  • Connecting thread: 4 × G½ inside
  • Highest allowed working pressure: 10 bar
  • Highest allowed working temperature (°C): 110 °C
  • Radiator connection: left or right side
  • Pressure Loss: The pressure loss of the radiator for the respective working conditions can be calculated by means of the value of the flow coefficient AT or the resistance coefficient ξT
